M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector

  • 1
  • 2
  • 3

Model Number : M83723-83G12122

Place of Origin : China

Brand Name : Jovelix

Payment Terms : L/C,T/T,Western Union

Relative humidity : 95%～98% at20±5℃

Salt spray resistance : 500 hours or 48 hours

MOQ : 10pcs

Delivery Time : 2-9weeks

RF Interference Shielding : 65dB @ 100MHz

Ambient Temperature : -65℃ ~ 200℃; -65 ℃~ 260 ℃(Sealed)

Packaging Details : standard export package

Price : 10$-500$

Certification : AS9001

Enterprise Standard No. : Q/3E20029-2007

Air tightness : 1 atmospheric pressure differential

Supply Ability : 10000pcs per month

Insulation Resistance : ≥5000MΩ under normal conditions;Humid and hot condition: ≥ 100 MΩ

Contact Now

ZH83723 Series Electrical Connectors

GJB4337-2002 (MIL-C-83723E)

Product Introduction:

This series of products fully complies with the technical requirements of GJB4337-2002 (MIL-C-83723E) for Class A, K, R and Y.

This product series is widely applicable to electrical connectors used in aviation, aerospace and other electronic equipment.

M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector

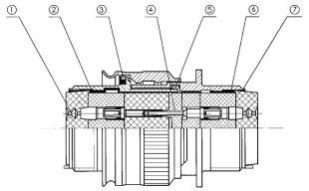

Key Features:
  1. The self-sealing wire seal with three ribbed holes provides reliable sealing and prevents moisture from entering the interior of the connector.
  2. The combined insulator is bonded to the shell by means of adhesive injection.
  3. The self-locking mechanism prevents mated connectors from loosening and disengaging.
  4. The interface seal ensures reliable interface sealing after connector assembly.
  5. The "O"-type ensures reliable circumferential sealing of mated connectors.
  6. The combined insulator is bonded to the shell by means of adhesive injection.
  7. Three teeth on the rear end of the shell prevent rotation of the cable clamp plate, and the nut compresses the insulator to achieve reliable sealing for each single wire.
disaster working Conditional I Conditional ŸII contact parts 20 16 12
sea level 1500 2300 Contact Resistance(mΩ) 7.4 3.8 2.2
15000m 500 750 Rated Current (A) 7.5 13 23
21000m 375 500
33000m 200 200 Note: Conditions I and II correspond to the hole arrangement of the insulator.
